Inexpensive load cell 10kg 30kg 50kg 100kg affordable tension/compression loadcell

Name: Inexpensive load cell 10kg 30kg 50kg 100kg affordable tensioncompression loadcell
Brand: Forsentek
Price: 1 USD

Buy cheap Inexpensive load cell 10kg 30kg 50kg 100kg affordable tension/compression loadcell product

Brand Name : Forsentek

Model Number : FMXD

Place of Origin : China

MOQ : 5pcs

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 50000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Load direction : Tension/Compression force measurement

Theory : Low profile load cell

Output : Analog Sensor

Capacity : 22lb / 67 lb / 112lb / 225lb

Contact Now

Inexpensive load cell 10kg 30kg 50kg 100kg affordable tension/compression loadcell

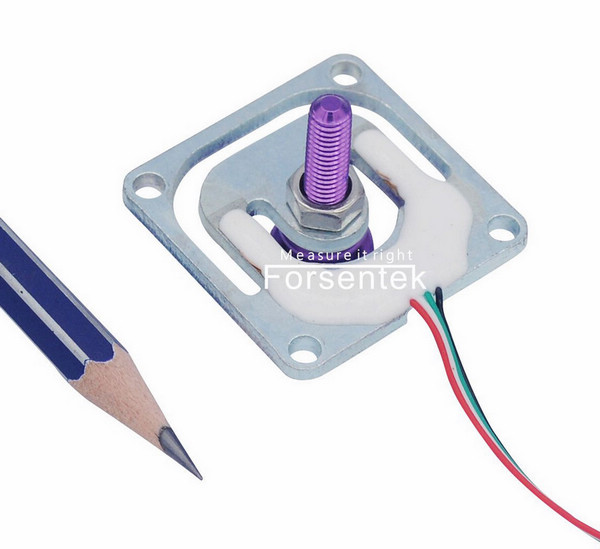

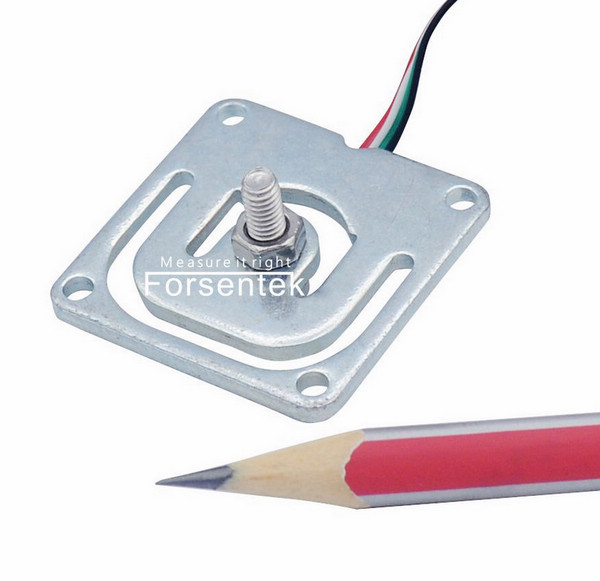

Inexpensive tension compression load cell FMXD utilizes strain gauge technology which are bonded on to the alloy steel sensing body.Ultra thin load cell FMXD is available in 0-22lbf / 0-67lbf / 0~112 lbf / 0-225lb four measuring ranges with maximum 0.1% F.S. non-linearity, it offers an accurate & low cost measurement solution for high volume applications.The 5.1mm thru hole located in the center of load cell can be used to mounting attachments to adapt to different applications. With its compact design, transducer FMXD low profile force sensor is suitable for applications where vertical space is limited,it is ideal for use in robotics,process control and automotive applications,etc..Custom made service is available for other measuring ranges with similar structure.

Inexpensive load cell 10kg 30kg 50kg 100kg affordable tension/compression loadcell

Dimensions(in "mm")

Inexpensive load cell 10kg 30kg 50kg 100kg affordable tension/compression loadcell

Specifications

Capacity	100N / 10kg / 20 lb 300N / 30kg / 65 lb 500N / 50kg / 110 lb 1000N / 100kg / 220 lb
Rated output	1.0/2.0mV/V
Excitation	3-12V
Zero balance	±0.3mV/V
Nonlinearity	±0.1% R.O.
Hysteresis	±0.1% R.O.
Nonrepeatability	±0.05% R.O.
Creep(3min)	±0.1% R.O.
Safe overload	120% F.S.
Ultimate overload	150% F.S.
Compensated temperature	-10...+50^oC
Temperature shift zero	±0.03% R.O./^oC
Temperature shift span	±0.03% R.O./^oC
Input resistance	1000±100 ohms
Output resistance	1000±100 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Alloy steel
Cable	AWG32*110mm
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Inexpensive load cell 10kg 30kg 50kg 100kg affordable tension/compression loadcell

Click here to download datasheet
