2-Axis Load Cell 200N 500N 1kN 2kN Two-dimensional Force Sensor

Brand Name : Forsentek

Model Number : F2H

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1120pcs/month

Delivery Time : 3-4 weeks

Packaging Details : 1pc/box

Usage : Two-dimensional Force Measurement

Type : Biaxial Load Cell

Output : Analog Sensor

Capacity : 2kN 1kN 500N 200N

Channel : Fx/Fy

Connection : M18 Threaded Rod

Principle : Strain Gauge Sensor

Contact Now

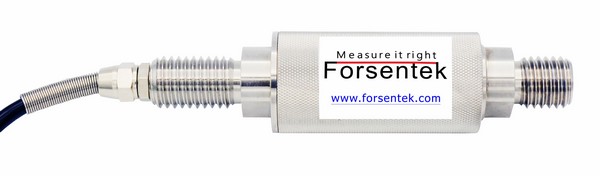

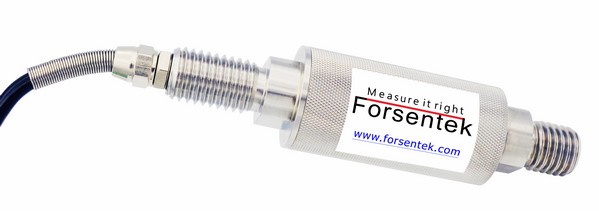

2-Axis Load Cell 200N 500N 1kN 2kN Two-dimensional Force Sensor

Biaxial load cell F2H is made from stainless steel based on strain gauge technology offering 200N / 500N / 1000N / 2000N four rated capacities for Fx/Fy two-dimensional force measurement. Both axes support tension and compression force measurement. 2-axis force sensor F2H can work with our 2-channel load cell amplifier LC2A to deliver 0-5V / 0-10V / 4-20mA output that is proportional to the force applied. 2-axis load cell is typically used for force measurement and control in actuators, force simulators, operating levers. Model F2H can be modified or customized upon request to suit different applications.

2-Axis Load Cell 200N 500N 1kN 2kN Two-dimensional Force Sensor

Dimensions

2-Axis Load Cell 200N 500N 1kN 2kN Two-dimensional Force Sensor
Ordering code

Part No. Capacity
Fx=Fy
F2H-20kg

20kgf
F2H-50kg 50kgf
F2H-100kg 100kgf
F2H-200kg 200kgf

Specifications

Rated Capacity

20kg 50kg 100kg 200kg

(200N 500N 1000N 2000N)
Rated output  1.5mV/V
Excitation  3-12V
Zero balance  ±0.05mV/V
Non-linearity  ±0.2% R.O.
Hysteresis  ±0.2% R.O.
Non-repeatability  ±0.1% R.O.
Creep(5min)  ±0.05% R.O.
Safe overload  150% F.S.
Ultimate overload  200% F.S.
Compensated temperature  0...+40oC
Operating temperature  -10...+60oC
Temperature shift on zero  ±0.03% R.O./oC
Temperature shift on span  ±0.02% R.O./oC
Input resistance 180±30 ohms
Output resistance 350±10 ohms
Insulation resistance  >2000M ohms
Ingress protection  IP50
Material of element  Stainless steel
Cable  Ø5.8*2000mm 6-core shielded cable
Wiring code

Fx @ Red--E+   Black--E-    Green--S+   White--S-

Fy @ Red--E+   Black--E-   Yellow--S+   Blue--S-


2-Axis Load Cell 200N 500N 1kN 2kN Two-dimensional Force Sensor
2-Axis Load Cell 200N 500N 1kN 2kN Two-dimensional Force Sensor

Click here to download datasheet
