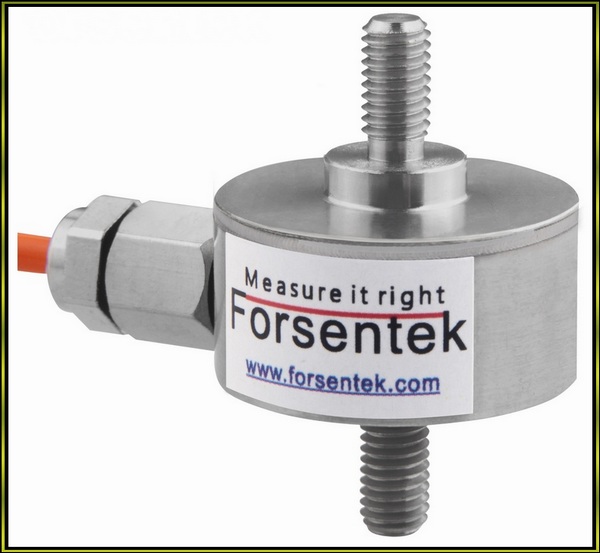

Pull force sensor 50N 100N 200N 300N 500N 1KN

Place of Origin : China

Brand Name : Forsentek

Model Number : Pull force sensor FL25

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Certification : CE

Usage : Pull push force measurement

Theory : Strain gauge force sensor

Output : Analog Sensor

Force measurement direction : Pull and push

Contact Now

Pull force sensor 50N 100N 200N 300N 500N 1KN

Features

  • CE certified
  • Stainless steel construction,in-line structure.
  • M5/M6 threads on both sides,easy to install.
  • Pull push force measurement.
  • Suitable for axial force measurement,air cylinder push force measurement.

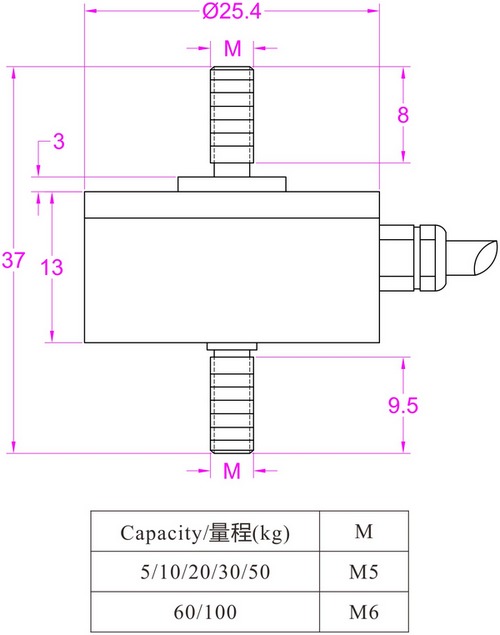

Dimensions

Pull force sensor 50N 100N 200N 300N 500N 1KN

Specifications

Capacity 50N 100N 200N 300N 500N 1KN
Rated output 2.0 mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 700±30 ohms
Output resistance 700±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø3*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Pull force sensor FL25

Pull force sensor 50N 100N 200N 300N 500N 1KN

Ordering Code.

FL25-50N,FL25-100N,FL25-200N,FL25-300N,FL25-500N,FL25-1KN
