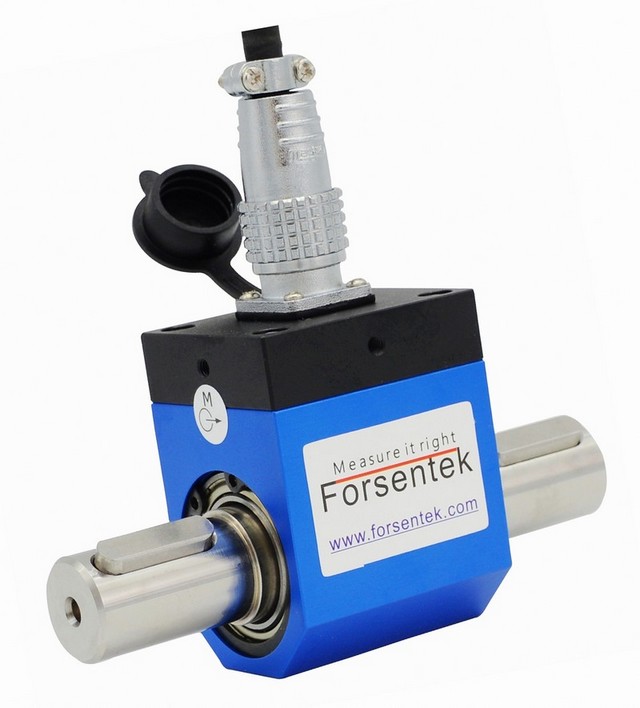

Shaft Rotary torque sensor motor torque measurement transducer

Place of Origin : China

Brand Name : Forsentek

Certification : CE

Model Number : FY01

MOQ : 1pc

Packaging Details : 1pc/box

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1690pcs/month

Usage : Rotating torque measurement

Theory : Dynamic torque sensor

Output : Analog Sensor

Torque direction : Clockwise&Counterclockwise

Torque range : 0-500Nm

Configuration : Shaft-to-shaft

Contact Now

Rotary torque sensor motor torque measurement

Shaft Rotary torque sensor motor torque measurement transducer

Features

  • CE certified
  • Strain gauge technology,analog output
  • Both clockwise and counterclockwise measurement
  • Up to 4000 r/m
  • Rotating torque measurement,motor torque measure

Shaft Rotary torque sensor motor torque measurement transducer

Dimensions

Shaft Rotary torque sensor motor torque measurement transducer

Shaft Rotary torque sensor motor torque measurement transducer

Specifications

Capacity 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP40
Material of element Stainless steel
Cable Ø5*3000mm 4-core shielded cable
Wiring code

Red--Excitation+  Black--Excitation-

Green--Signal+  White--Signal-

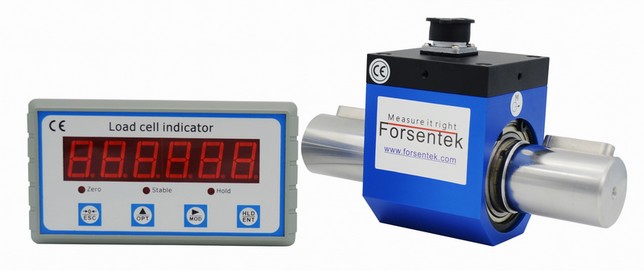

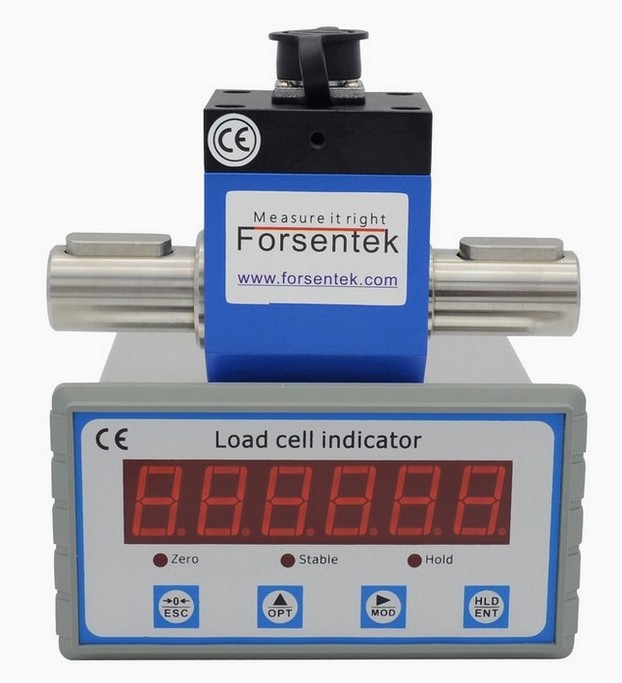

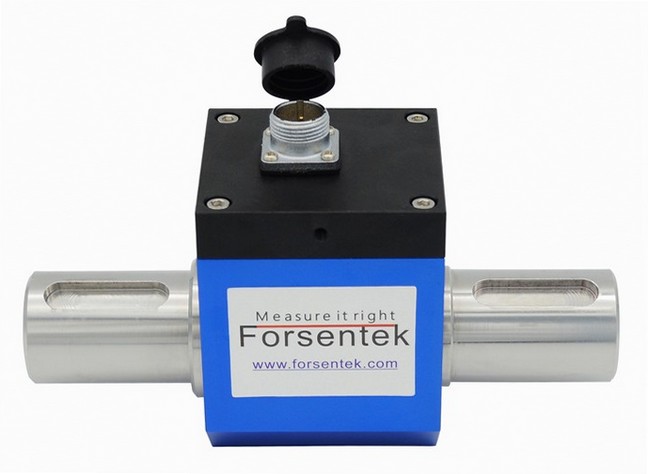

Dynamic torque sensor for rotating torque measurement

Shaft Rotary torque sensor motor torque measurement transducer

Shaft Rotary torque sensor motor torque measurement transducer

Shaft Rotary torque sensor motor torque measurement transducer

Shaft Rotary torque sensor motor torque measurement transducer

Shaft Rotary torque sensor motor torque measurement transducer



Click here to download datasheet
