Rotating torque transducer shaft to shaft dynamic torque sensor

Place of Origin : China

Brand Name : Forsentek

Model Number : FY02

MOQ : 1pc

Packaging Details : 1pc/box

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2450pcs/month

Certification : CE

Usage : Rotating torque measurement

Type : Shaft dynamic torque sensor

Output : Analog Sensor

Torque measurement direction : Clockwise&Counterclockwise

Contact Now

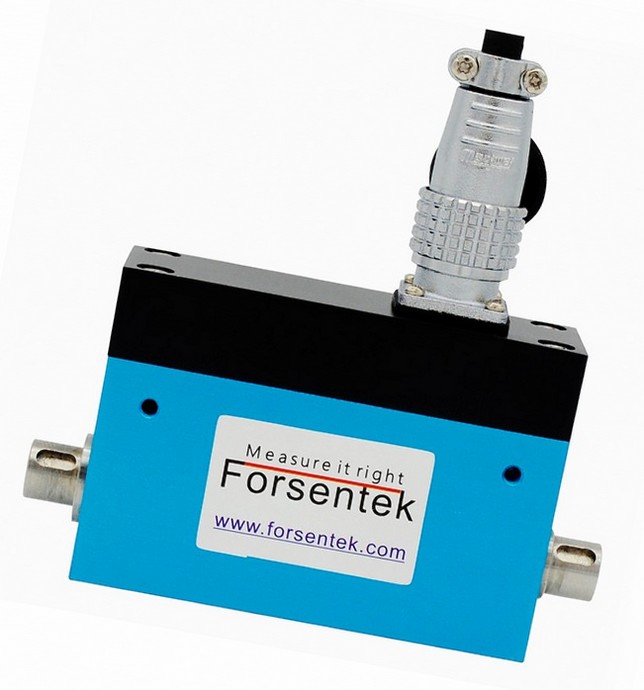

Rotating torque transducer dynamic torque sensor

Rotating torque transducer shaft to shaft dynamic torque sensor



Features

  • CE approved
  • Strain gauge technology,analog output
  • Both clockwise and counterclockwise measurement
  • Up to 4000 r/m
  • Rotating torque measurement,engine torque measurement

Rotating torque transducer shaft to shaft dynamic torque sensor

Dimensions

Rotating torque transducer shaft to shaft dynamic torque sensor

Rotating torque transducer shaft to shaft dynamic torque sensor

Specifications

Capacity 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM
Rated output 1.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 385±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø5.5*3000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-

Dynamic torque sensor FY02 is a slip ring rotary torque transducer,strain gauge based,inline type structure,shaft to shaft design,can measure rotating torque in both clockwise and counterclockwise direction.
