Name: Miniature force transducer 10N 20N 50N 100N 200N 300N 500N Micro force sensor
Brand: Forsentek
Price: 1 USD

Brand Name : Forsentek

Model Number : FSSM

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 3705pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Force measurement

Type : Miniature S type load cell

Output : Analog Sensor

Capacity : 10N 20N 50N 100N 200N 300N 500N 1000N

Force measurement direction : Tension and compression

Thread : M3/M4

Contact Now

Miniature force transducer

10N 20N 50N 100N 200N 300N 500N Micro force sensor
Miniature force transducer 10N 20N 50N 100N 200N 300N 500N Micro force sensor
Features

Miniature force transducer 10N 20N 50N 100N 200N 300N 500N Micro force sensor
Specifications

Capacity	10N / 1kgf / 2.2 lbf 20N / 2kgf / 4.5lbf 50N / 5kg / 11.2lb 100N / 10kgf / 22.4lbf 200N / 20kgf / 45 lbs 300N / 30kg / 67 lbf 500N / 50kgf / 112lb 1kN / 100kg / 224lbf
Rated output	2.0mV/V
Excitation	3-12V
Zero balance	±0.05mV/V
Nonlinearity	±0.1% R.O.
Hysteresis	±0.1% R.O.
Nonrepeatability	±0.05% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.03% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	380±30 ohms
Output resistance	350±5 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Stainless steel
Cable	Ø2*4000mm 4-core shielded
Wiring code	Compression@ Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Miniature size tension and compression force transducer FSSM

Miniature force transducer 10N 20N 50N 100N 200N 300N 500N Micro force sensor

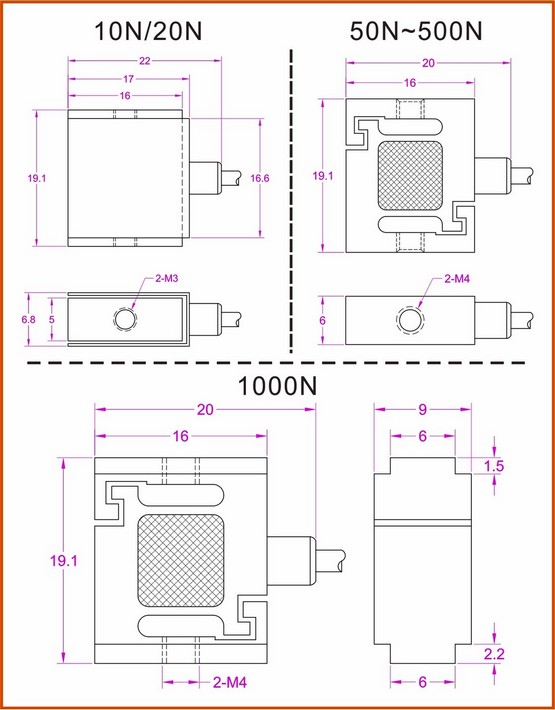

Dimensions(in milimeter)
Miniature force transducer 10N 20N 50N 100N 200N 300N 500N Micro force sensor

Ordering Code:
FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N,
FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN

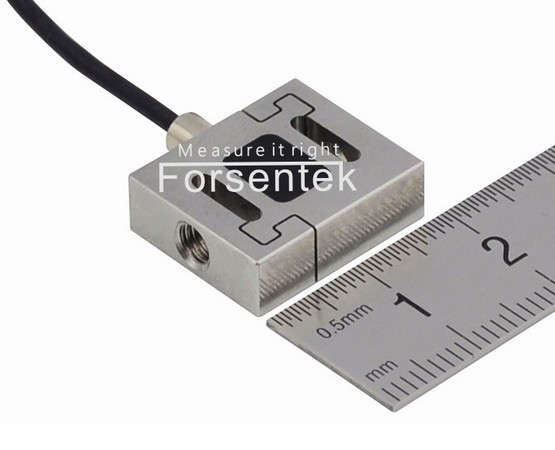

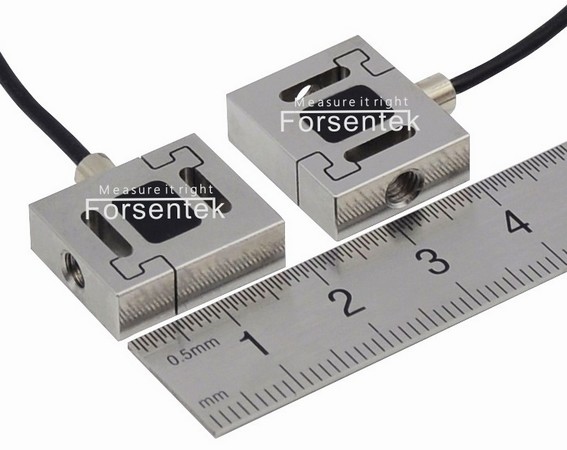

Miniature force transducer 10N 20N 50N 100N 200N 300N 500N Micro force sensor Images
